ilica Gel Breather 3kg Mounting Dimensions Specifications for Selecting the Right Breather for Your Application

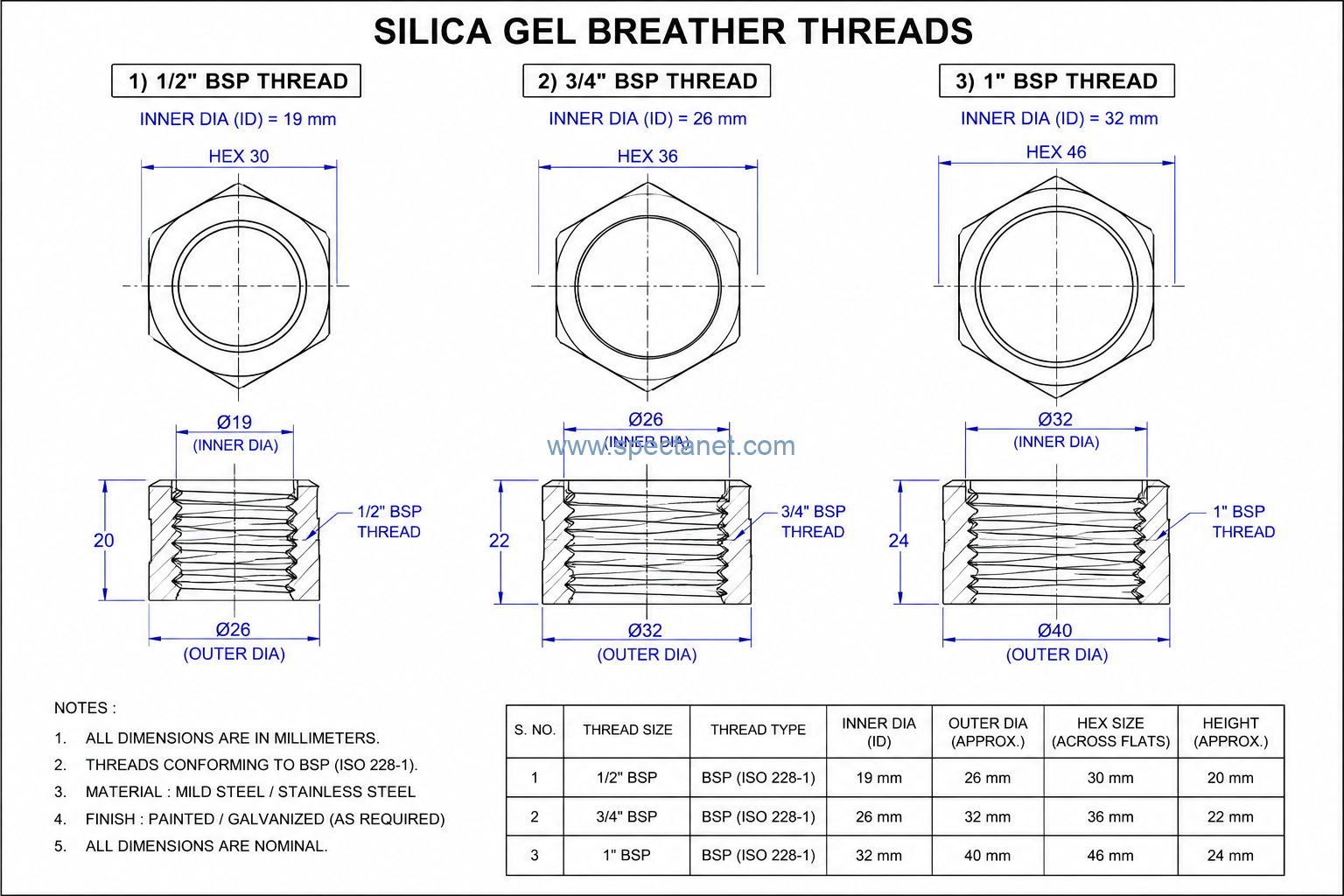

A)Silica Gel Breather 3kg Mounting Thread Dimensions 1/2″,3/4″.1″
1)1/2″ BSP THREAD-19 MM INNER Dia .
2)3/4″ BSP THREAD-26 MM INNER Dia.
3)1″ BSP THREAD-32 MM INNER Dia.

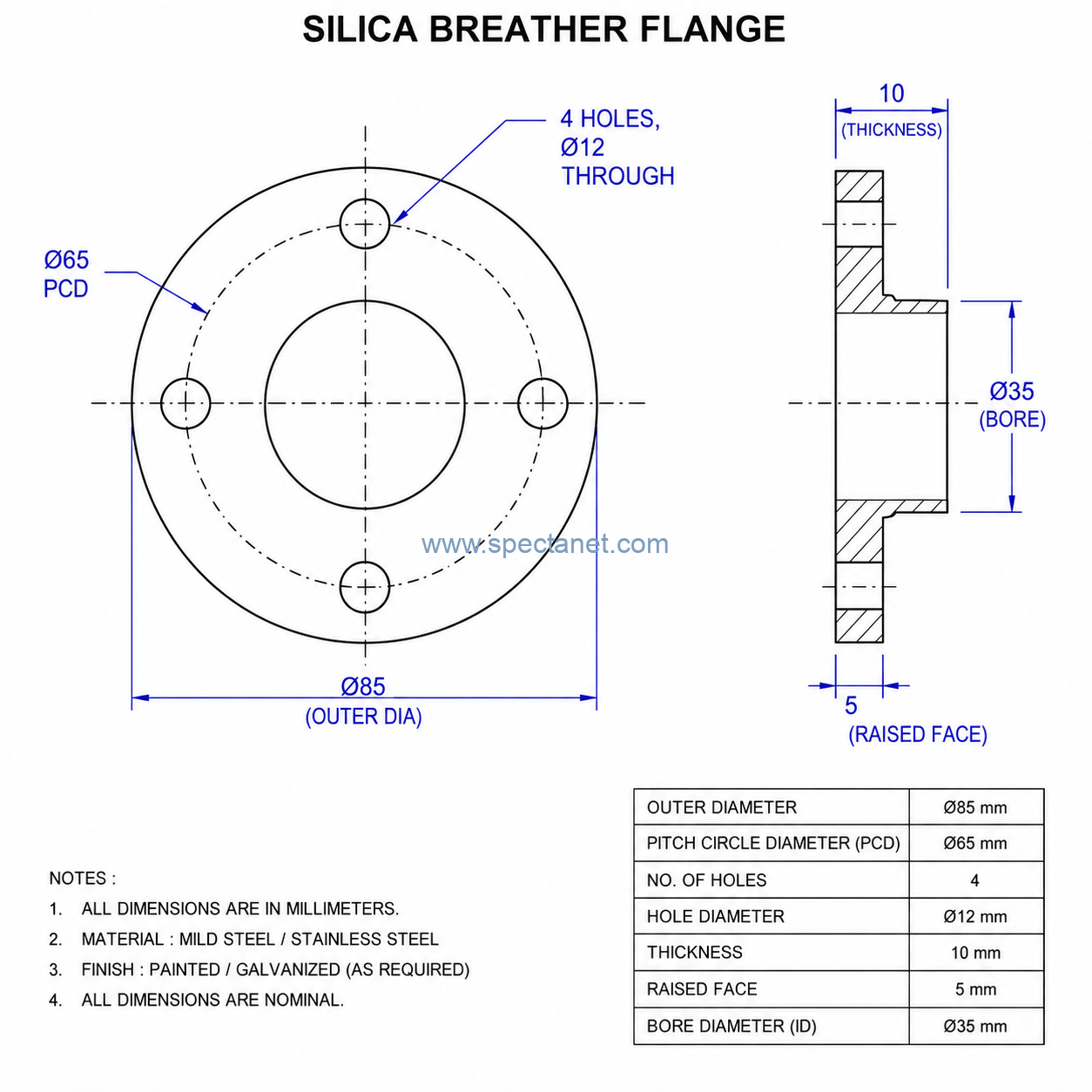

B)Silica Gel Breather 3kg Mounting Flange Dimensions 85 mm Dia, 4Holes ,65mm PCD ,12 Dia Through hole
C)Silica Gel Breather 3kg Mounting FlangeDimensions 115 mm Dia, 4Holes ,85mm PCD ,12 Dia Through hole.
You can find Silica Gel Breather 3kg Flange and Thread dimensions in the image section.
