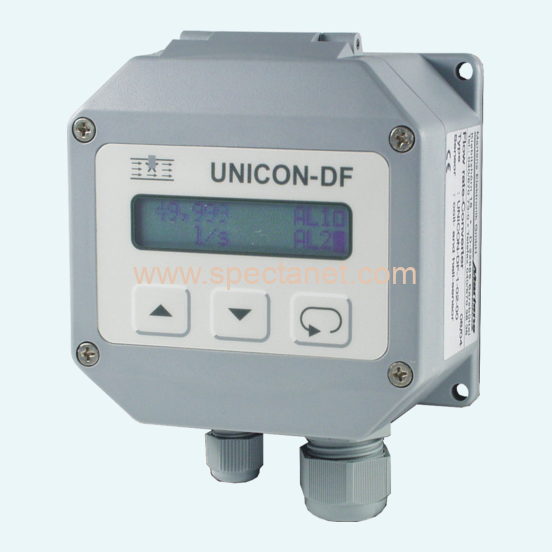

Senseca UNICON-DF Flow Converter — Type 2

Model / ordering code: UNICON-DF-2-02-00

Senseca UNICON-DF loop-powered flow converter for pulse sensors. Programmable flow range and units, two totalizers, 4–20 mA output, pulse output and two electronic alarm outputs in an IP65 field case. Accepts coil, Namur, NPN, PNP and Hall-type pulse inputs. Type 2 provides an additional input for addition/subtraction. Supply 12–30 V DC; operating temperature −10 to +55 °C.

Configuration: Ordering code: UNICON-DF-2-02-00. Type 2: two measuring inputs for addition/subtraction; mounting 02 = field mounting with separate flow-sensor cable; option 00 = without option.
