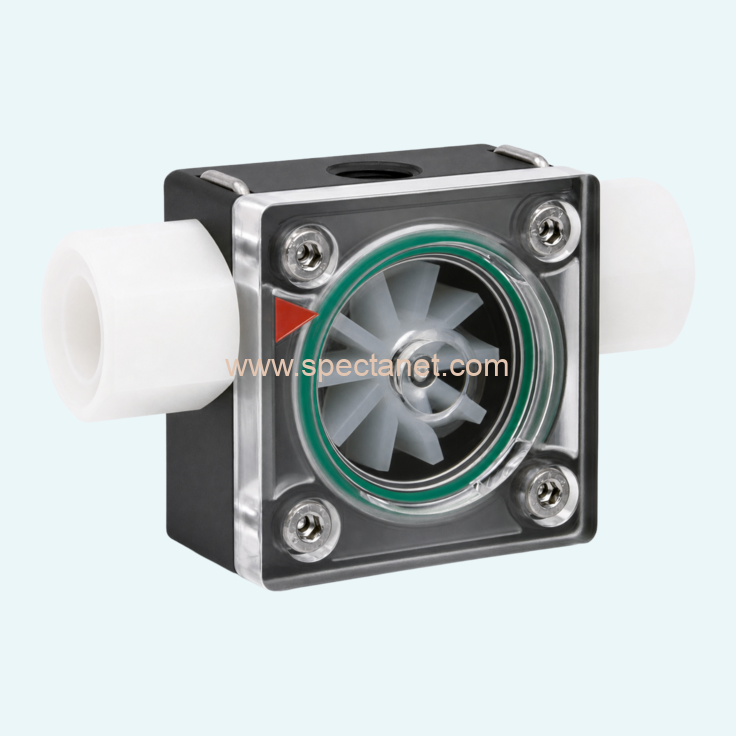

Senseca PO DN 10 Adjustable Rotor Flow Indicator

Senseca PO DN 10 Adjustable Rotor Flow Indicator

Mechanical rotor flow indicator with rotatable connections and selectable inlet drilling. The rotor provides quantitative visual flow indication; the valve connections can be removed using clip fittings.

Specifications

• Ordering code: PO-010GVA070
• Nominal size: DN 10
• Connection: G 3/8
• Connection/material: PPS housing with transparent polysulfone cover; connection material configurable
• Indicating range / flow data: Display range 0.4–12.0 l/min
• Recommended maximum flow: 12.0 l/min
• Pressure rating: PN 16
• Medium/application: Water; oils may increase rotor running-up value
• Medium temperature: 0 to +60 °C
• Ambient temperature: 0 to +60 °C

Confirm the complete ordering code, flow direction, medium compatibility, operating conditions and installation orientation against the current Senseca datasheet before ordering.
