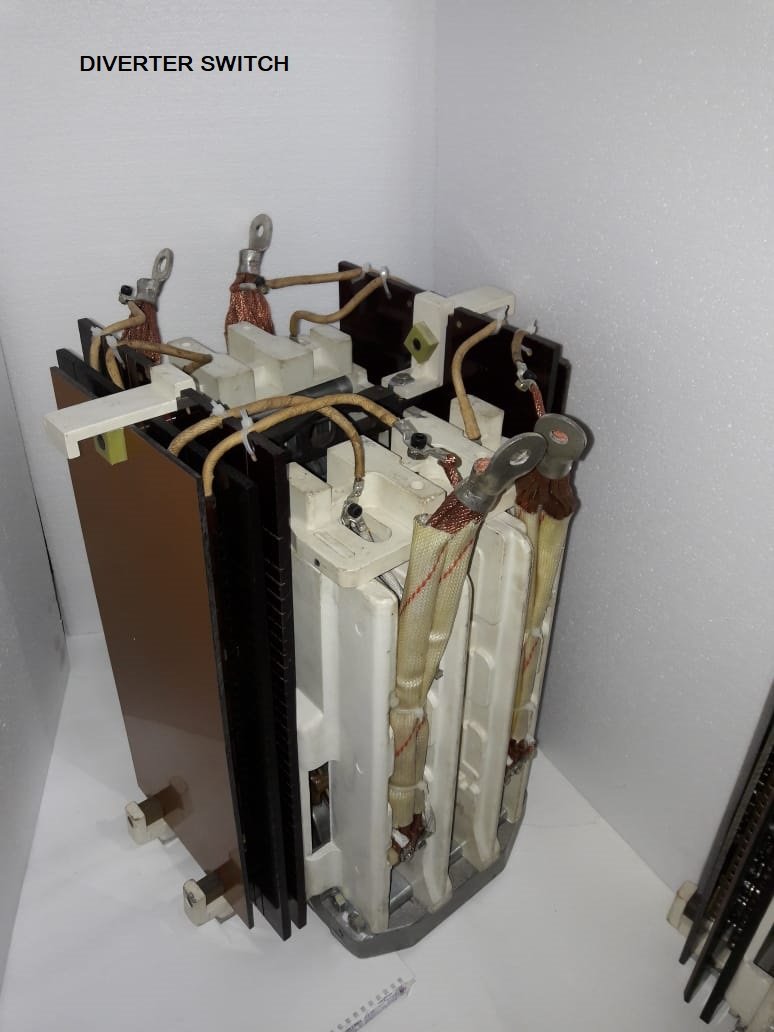

NGEF Diverter Switch – 500 Amps
The NGEF 500 Amps Diverter Switch is a high-performance switching component designed for use in On-Load Tap Changer (OLTC) systems of power and distribution transformers. It is specially engineered to handle a rated current of up to 500 amperes, ensuring smooth and reliable tap changing under full-load conditions without interrupting the power supply. This makes it an ideal solution for maintaining stable voltage levels and consistent power quality in demanding electrical networks.
Manufactured using premium-grade conductive materials and high-strength insulating components, the NGEF 500A Diverter Switch offers low contact resistance, excellent current-carrying capacity, and superior thermal stability. Its advanced arc-quenching and contact protection system minimizes electrical erosion during switching operations, reducing wear and extending operational life. The rugged mechanical structure provides high durability and dependable performance even under continuous and heavy-load conditions.
The diverter switch is equipped with precision-designed main and transition contacts that enable smooth current transfer between tap positions. These contacts operate in coordination with transition resistors or reactors to prevent short circuits, voltage fluctuations, and transient disturbances. The securely mounted terminals and high-dielectric insulation system ensure safe electrical connections and protection against internal flashovers
Key Features – NGEF Diverter Switch (500 Amps)
-
High Current Capacity – Designed to safely handle up to 500 amps, ensuring stable and reliable performance under full-load operating conditions.
-
Low Contact Resistance – Manufactured with high-quality conductive materials to minimize power losses and reduce heat generation during operation.
-
Advanced Arc Control System – Equipped with efficient arc-quenching technology to reduce contact wear and extend service life.
-
Robust Mechanical Construction – Built with strong insulating and structural components for long-term durability and resistance to mechanical stress.
-
Easy Maintenance and Installation – User-friendly design allows quick inspection, simple servicing, and easy integration with OLTC systems.
